Answer
Sep 25, 2025 - 07:34 AM
Hi
Thank you for reaching out to us with questions and concerns. Here is what I was able to find out for you:

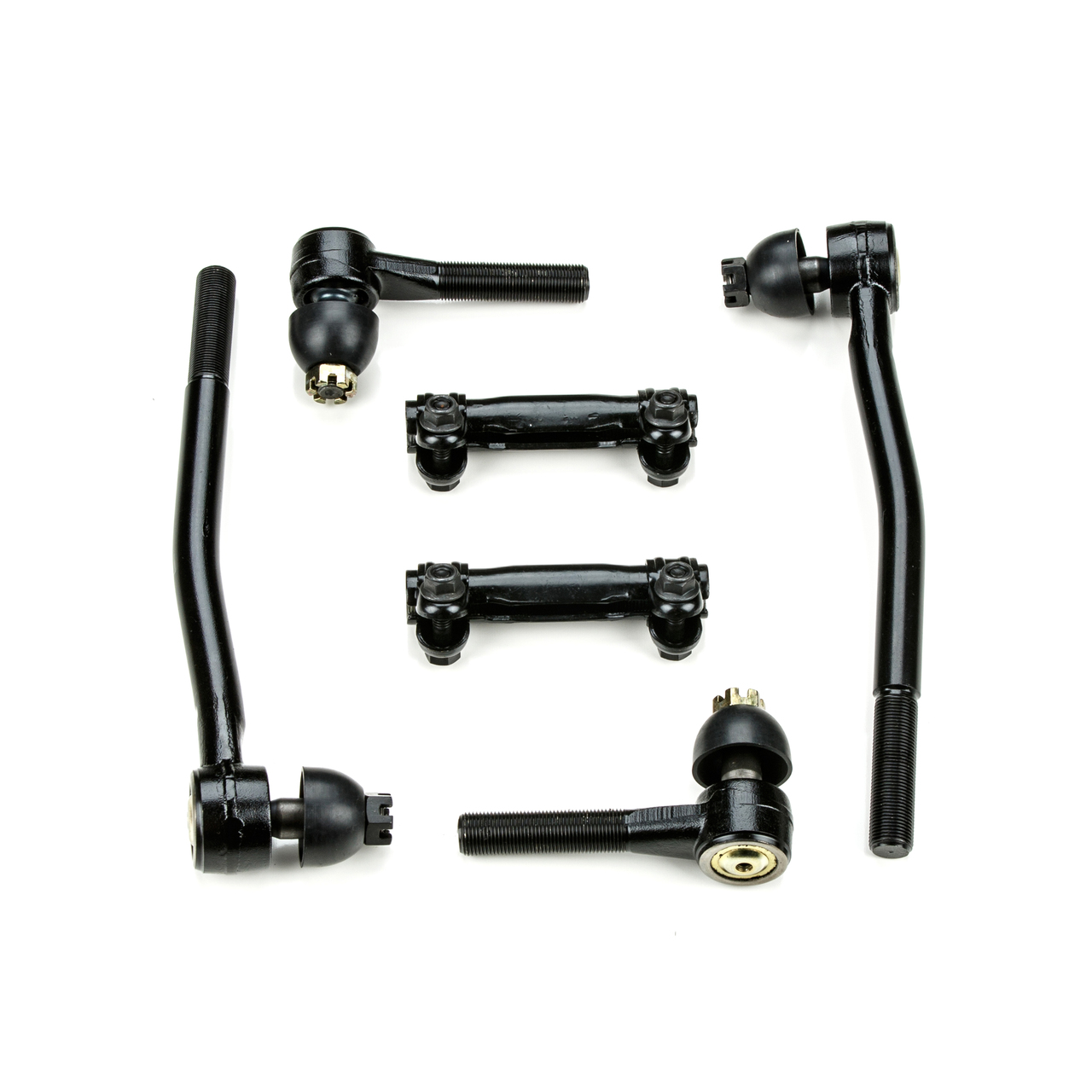

ES692 Inner Tie Rod Ends
Length of Stud Taper - 0.520"
Small Taper Dia - 0.558"
Large Taper Dia - 0.623"
ES314RL Outer Tie Rod Ends
Length of Stud Taper - 0.520"
Small Taper Dia - 0.558"
Large Taper Dia - 0.623"
The Length of the Tie Rod End Sleeves are 4 3/4". You can adjust them as needed.
Thank you
Jake
Andersen Restorations
Thank you for reaching out to us with questions and concerns. Here is what I was able to find out for you:
ES692 Inner Tie Rod Ends
Length of Stud Taper - 0.520"
Small Taper Dia - 0.558"
Large Taper Dia - 0.623"
ES314RL Outer Tie Rod Ends
Length of Stud Taper - 0.520"
Small Taper Dia - 0.558"
Large Taper Dia - 0.623"
The Length of the Tie Rod End Sleeves are 4 3/4". You can adjust them as needed.
Thank you
Jake
Andersen Restorations
